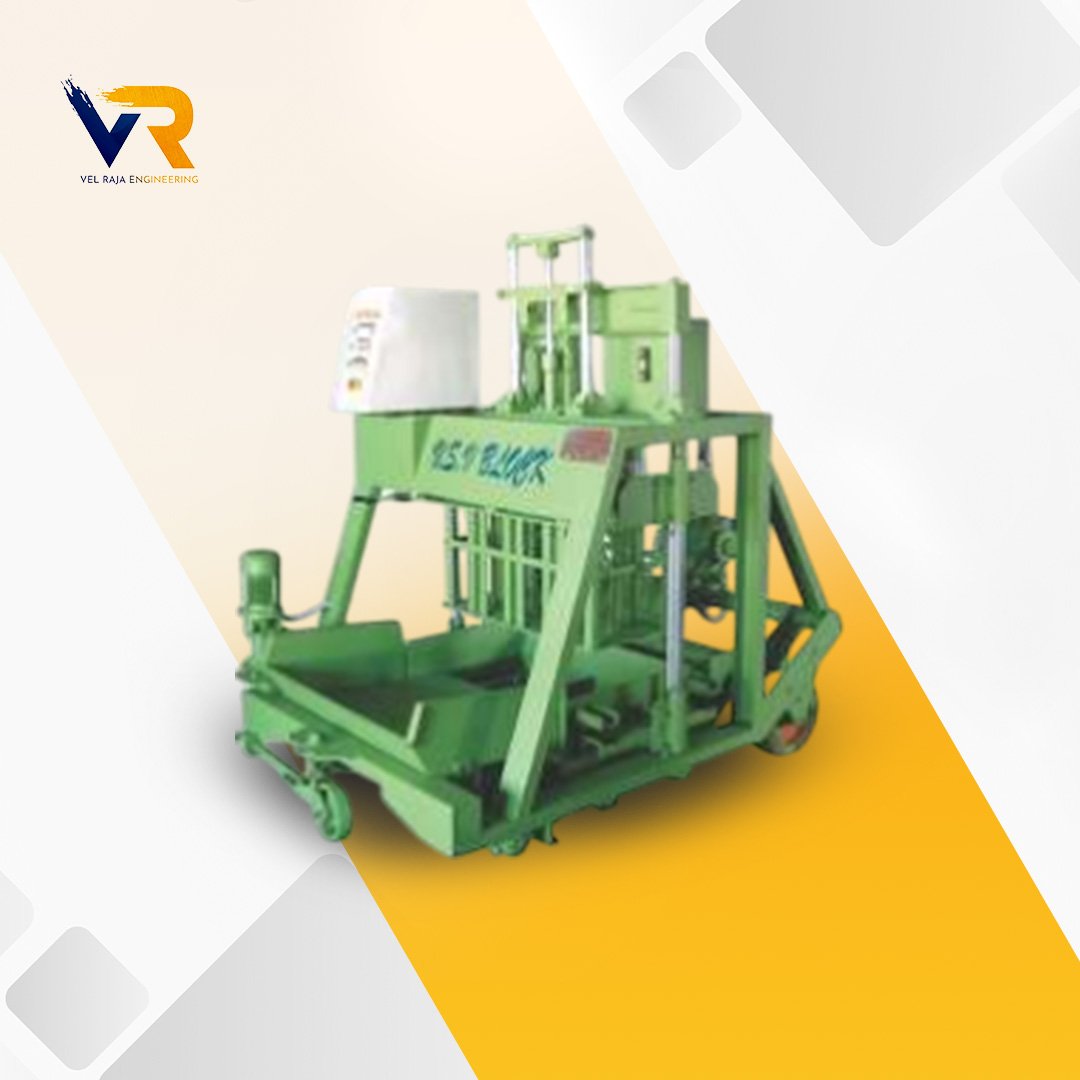

Punching Type Hollow Block Making Machine
The Punching Type Hollow Block Making Machine is designed for efficient and precise production of high-quality hollow blocks, ensuring uniform shape, strength, and durability. Built with robust construction and advanced vibration technology, it delivers consistent output with low maintenance and high operational efficiency. Suitable for both small-scale and large industrial applications, this machine provides reliable performance, faster production cycles, and long service life, making it an ideal choice for modern construction needs.
Specification
| MODEL | 860 SINGLE VIBRATOR |
| Power | 5 HP Three Phase |
| Hydraulic Pump Motor | 3 HP 1440 RPM Three Phase |
| Vibrator Motor | 1.5 HP 2880 RPM Three Phase |
| Travel Motor | 0.5 HP 1440 RPM Three Phase |
| Operating Pressure | 140 KG / cm2 |
| Vibrations | 6000 HZ Amplitude Adjustable |
| Molding Area | 860 X 600 mm |
| Dimension | 2000 X 1500 X 2000 mm |
| Weight | 1100 Kgs (Approx) |
| Production Capacity | 4" Block - 8 Block / Stroke, 2000 / Shift 6" Block" - 5 Block / Stroke, 1600 / Shift 8" Block - 4 Block / Stroke, 1100 / Shift |
