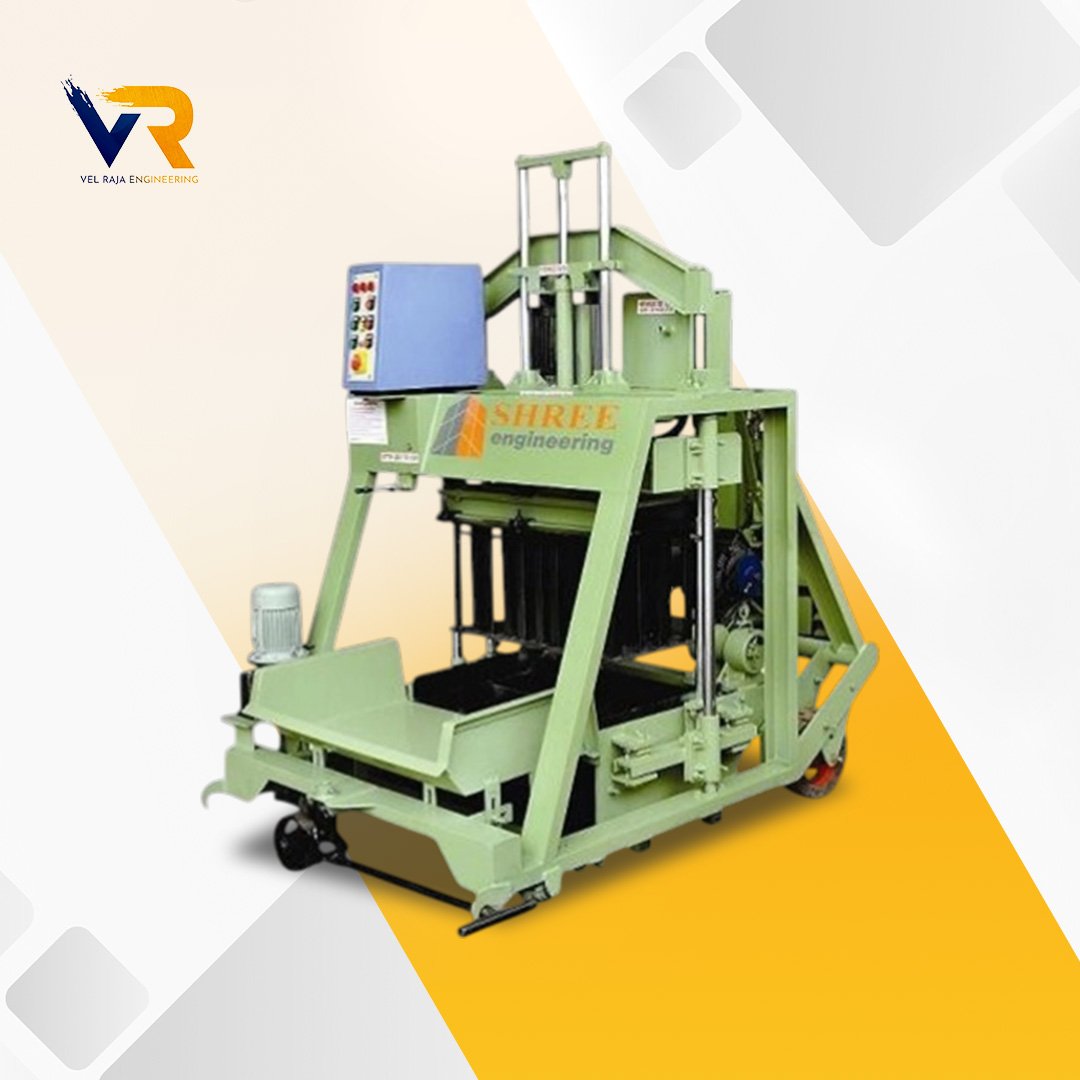

Concrete Block Making Machine Triple Vibrator Double Stroke

The Concrete Block Making Machine with Triple Vibrator and Double Stroke is engineered for high-efficiency production of strong and uniform concrete blocks, ensuring superior compaction and consistent quality. Featuring advanced triple vibration and double stroke technology with robust construction, it delivers higher output, smooth operation, and low maintenance. Suitable for both small-scale and large industrial applications, this machine ensures reliable performance, faster production cycles, and long service life for modern construction demands.

Specification

MODEL 860 TRIPLE VIBRATOR DOUBLE STROKE
Power 8 HP Three Phase
Hydraulic Pump Motor 5 HP 1440 RPM
Vibrator Motor 2 HP 2880 RPM + Top Vib (0.5 HP)
Travel Motor 0.5 HP 1440 RPM
Operating Pressure 140 KG / cm2
Vibrations 6000 HZ Amplitude Adjustable
Molding Area 860 X 900 mm
Dimension 2000 X 1500 X 2000 mm
Weight 1200 Kgs (Approx)
Production Capacity 4" Block - 16 Block / Stroke, 3500 / Shift
6" Block" - 10 Block / Stroke, 2800 / Shift
8" Block - 8 Block / Stroke, 2000 / Shift
