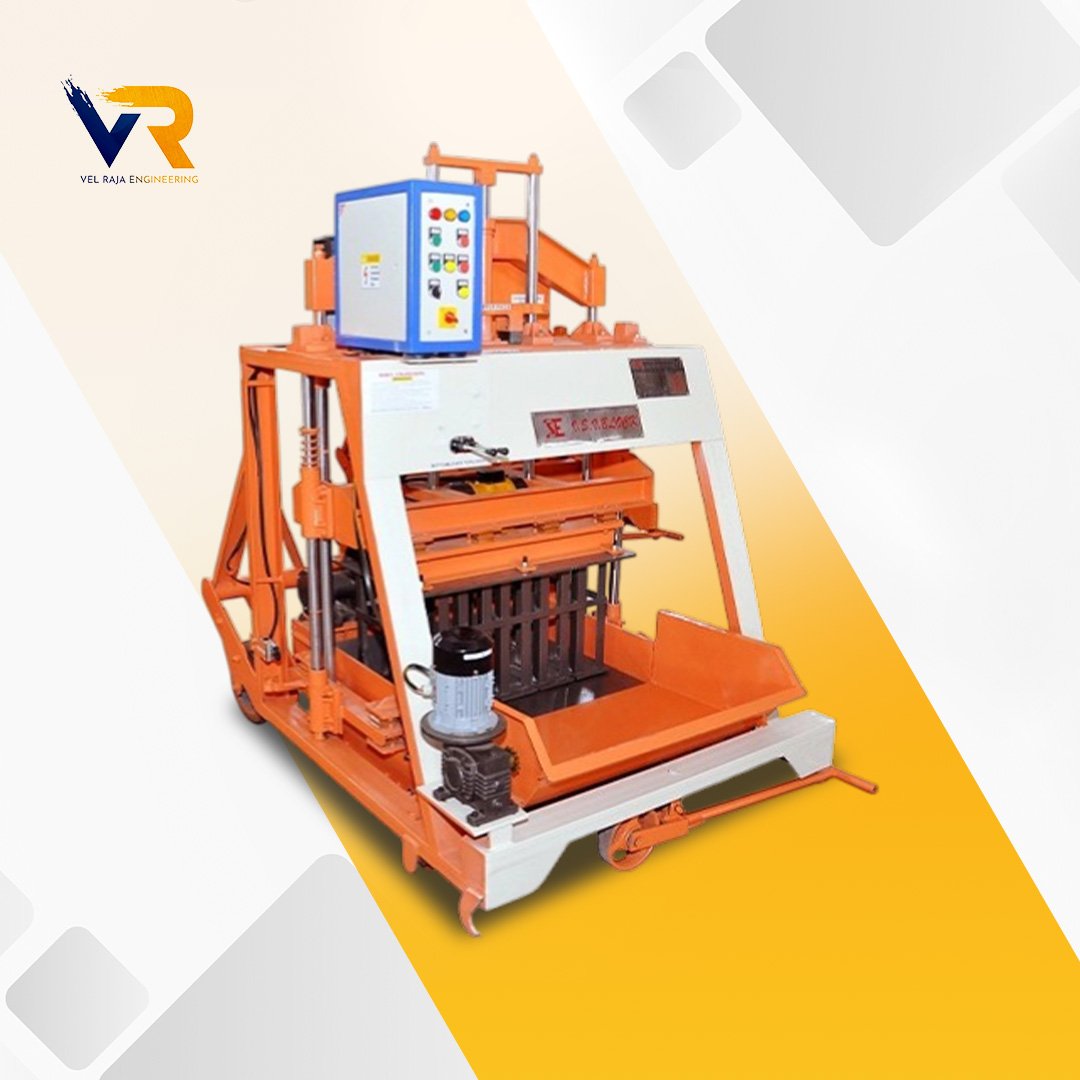

Pressing Type Concrete Block Making Machine Triple Vibrator
The Pressing Type Concrete Block Making Machine with Triple Vibrator is designed for high-efficiency production of dense and durable concrete blocks, ensuring superior compaction, uniform shape, and consistent strength. Equipped with advanced triple vibration technology and robust construction, it delivers enhanced output, low maintenance, and smooth operation. Suitable for both small-scale and large industrial applications, this machine ensures reliable performance, faster production cycles, and long service life for modern construction needs.
Specification
| MODEL | 860 TRIPLE VIBRATOR |
| Power | 6 HP Three Phase |
| Hydraulic Pump Motor | 3 HP 1440 RPM |
| Vibrator Motor | 2 HP 2880 RPM + Top Vib (0.5 HP) |
| Travel Motor | 0.5 HP 1440 RPM |
| Operating Pressure | 140 KG / cm2 |
| Vibrations | 6000 HZ Amplitude Adjustable |
| Molding Area | 860 X 600 mm |
| Dimension | 2000 X 1500 X 2000 mm |
| Weight | 1100 Kgs (Approx) |
| Production Capacity | 4" Block - 8 Block / Stroke, 2000 / Shift 6" Block" - 5 Block / Stroke, 1600 / Shift 8" Block - 4 Block / Stroke, 1100 / Shift |
