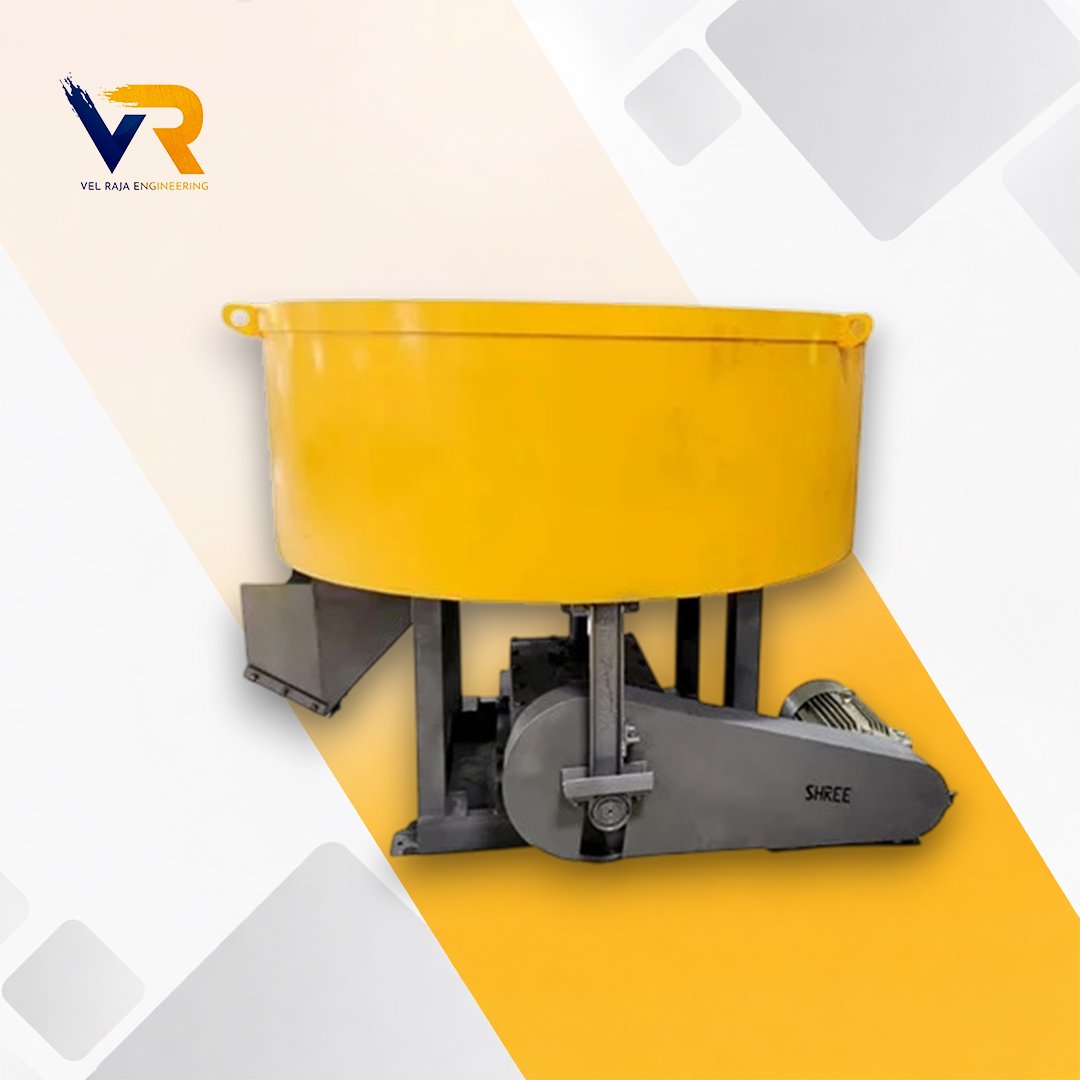

Pan Mixer Machine 350 Kgs

The Pan Mixer Machine 350 KG is a high-performance mixing solution designed for heavy-duty construction and industrial applications. Built with a strong steel body and precision-engineered gearbox, this mixer ensures uniform and consistent mixing of concrete, fly ash, cement, and other materials. With a 350-kg batch capacity, it is ideal for large-scale paver block plants, brick manufacturing units, and construction projects.

Specification

Output Capacity 350 Kg
Motor 7.5 HP (CROMPTON)
Output RPM 30-40 RPM
Discharge System Bottom Opening Sliding Type
Make of Motor Crompton
Cell Dia 1450 MM (Thickness 6 MM)
Cell Height 625 MM
Scrapers 2 Roller and 2 Hand type
Cell Bottom Plate Thickness 10 MM
Cycle Time 5-8 Min
Coupling Method In Between gear box (RAJKOT) and drive unit chains braket arrangement will be provided to avoid waddling
